AFurnitureAssembler Class Reference

Furniture assembly station for crafting items from recipes. More...

#include <FurnitureAssembler.h>

Inheritance diagram for AFurnitureAssembler:

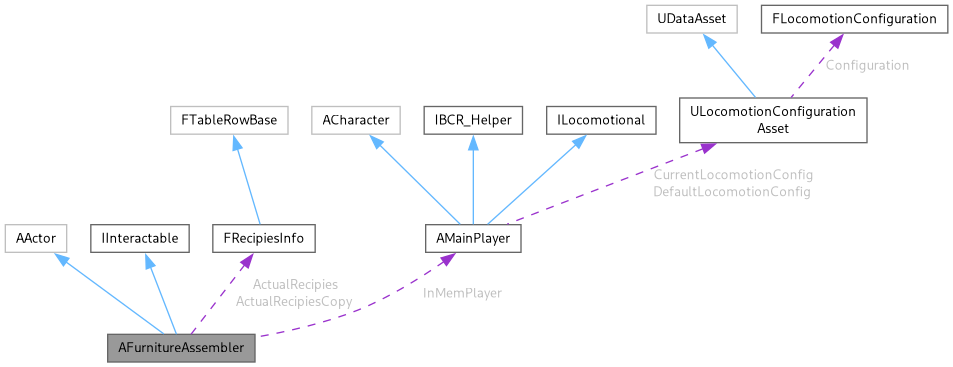

Collaboration diagram for AFurnitureAssembler:

Public Member Functions
	AFurnitureAssembler ()
	Initializes the furniture assembler with collision detection.
virtual void	BeginPlay () override
	Loads recipe data and initializes the first recipe.
virtual void	Tick (float DeltaTime) override
	Handles player interaction without held objects.
FRecipiesInfo	GetActualRecipiesInfo ()
	Gets the current active recipe information.
void	CraftFurniture ()
	Attempts to craft furniture with the current materials.
void	ResetAssembler ()
Public Member Functions inherited from IInteractable
void	Interact (AMainPlayer *Player)
void	InteractWithObject (AMainPlayer *Player, AActor *Object)
	Object-specific interaction.

Public Attributes
FRecipiesInfo	ActualRecipies
FRecipiesInfo	ActualRecipiesCopy
bool	PlayFlowerAnimation
	Animation and state.
bool	CraftOnce = false
int	requieredMaterials = 3
UStaticMeshComponent *	PackagePosition

Protected Member Functions
void	OnOverlapBegin (UPrimitiveComponent *OverlappedComponent, AActor *OtherActor, UPrimitiveComponent *OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult &SweepResult)
	Handles player entry into the assembler zone.
void	OnElementDropOnAssembler ()
void	OnElementDropOnAssembler_Implementation ()
	Blueprint event triggered when an element is dropped on the assembler.
void	TimerElapsed (AActor *Value, AMainPlayer *Player)

Protected Attributes
UBoxComponent *	AssemblerZone
UDataTable *	AllRecipies
TArray< FName >	RowsNames
TMap< AMainPlayer *, AActor * >	PlayerHolding
AActor *	InMemActor
AMainPlayer *	InMemPlayer

Detailed Description

Furniture assembly station for crafting items from recipes.

Manages recipe-based crafting system with material validation and output generation

Constructor & Destructor Documentation

AFurnitureAssembler()

AFurnitureAssembler::AFurnitureAssembler

(

)

Initializes the furniture assembler with collision detection.

Sets up assembler zone and overlap events for player detection

Here is the call graph for this function:

Member Function Documentation

BeginPlay()

void AFurnitureAssembler::BeginPlay ( )

overridevirtual

Loads recipe data and initializes the first recipe.

Reads recipes from DataTable and sets up the initial crafting target

CraftFurniture()

void AFurnitureAssembler::CraftFurniture

(

)

Attempts to craft furniture with the current materials.

Validates all required materials are present and spawns the output item

GetActualRecipiesInfo()

FRecipiesInfo AFurnitureAssembler::GetActualRecipiesInfo

(

)

Gets the current active recipe information.

CRAFTING SYSTEM //////// Recipe management

Returns the recipe data for the furniture currently being crafted

Returns

Current recipe information including materials and output

OnElementDropOnAssembler()

void AFurnitureAssembler::OnElementDropOnAssembler ( )

protected

INTERFACE IMPLEMENTATION //////// IInteractable methods CRAFTING EVENTS //////// Blueprint events

OnElementDropOnAssembler_Implementation()

void AFurnitureAssembler::OnElementDropOnAssembler_Implementation ( )

protected

Blueprint event triggered when an element is dropped on the assembler.

Called when a valid material is successfully added to the recipe

OnOverlapBegin()

void AFurnitureAssembler::OnOverlapBegin ( UPrimitiveComponent * OverlappedComponent, AActor * OtherActor, UPrimitiveComponent * OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult & SweepResult )

protected

Handles player entry into the assembler zone.

EVENT CALLBACKS //////// Collision detection

Tracks players and their held objects for automatic item processing

Parameters

OverlappedComponent	The component that was overlapped
OtherActor	The actor that entered the assembler zone
OtherComp	The component of the overlapping actor
OtherBodyIndex	Body index of the collision
bFromSweep	Whether this was from a sweep operation
SweepResult	Hit result from sweep if applicable

Here is the caller graph for this function:

Tick()

void AFurnitureAssembler::Tick ( float DeltaTime )

overridevirtual

Handles player interaction without held objects.

Provides feedback when player approaches without required items

Parameters

Player

The player interacting with the assembler

Handles player interaction with held objects

Validates and processes material deposits for crafting

Parameters

Player	The player interacting with the assembler
Object	The object the player is holding

Updates the assembler and processes automatic item deposits

Monitors dropped items in the zone and processes valid materials

Parameters

DeltaTime

Time elapsed since the last frame in seconds

Member Data Documentation

ActualRecipies

FRecipiesInfo AFurnitureAssembler::ActualRecipies

PROPERTIES //////// Current recipe data

AllRecipies

UDataTable* AFurnitureAssembler::AllRecipies

protected

RECIPE SYSTEM //////// Recipe data management

AssemblerZone

UBoxComponent* AFurnitureAssembler::AssemblerZone

protected

COMPONENTS //////// Interaction zone

---

The documentation for this class was generated from the following files:

• /sources/Source/BCR/Headers/System/FurnitureAssembler.h
• /sources/Source/BCR/Sources/System/FurnitureAssembler.cpp
